Products >> GB28181 Bridge
GB28181 Bridge
Happytime GB28181 Bridge can seamlessly connect ONVIF cameras to the GB28181 platform to achieve centralized management and control of video surveillance. It supports the simultaneous access of multiple ONVIF cameras, with each channel working independently and without interference. It automatically processes the RTSP stream of ONVIF cameras without requiring manual configuration by the user. It supports transparent operation of the camera's pan-tilt-zoom (PTZ) and pan-tilt-zoom lens to ensure consistency in user experience.
Happytime GB28181 Bridge has passed the test of the GB28181 automated test tool and has been extensively tested on the GB28181 platforms of well-known manufacturers such as Hikvision, Huawei, Dahua, Uniview etc to ensure compatibility with most well-known manufacturers' GB28181 platforms. Whether it is a large-scale video surveillance project or embedded device development, Happytime GB28181 Bridge can provide strong support.
Convert onvif camera to gb28181 camera
Support transparent PTZ and preset operation
Support automatic proxy of rtsp stream of onvif camera
Support GB28181 standard 2016 and 2022 version, Support IPv6
Support cross-platform compilation
Compatible with most well-known manufacturer platforms
Key features
1.ONVIF to GB28181 conversion:
Happytime GB28181 Bridge can convert ONVIF-compliant IP cameras into GB28181 cameras, ensuring compatibility between devices and platforms.
2.Multi-channel support:
Happytime GB28181 Bridge supports the simultaneous access of multiple ONVIF cameras, with each channel independently managing an IP camera, greatly improving the flexibility and scalability of the system.
3.RTSP stream automatic proxy:
For the RTSP stream of ONVIF cameras, Happytime GB28181 Bridge provides automatic proxy services, simplifying the configuration and management of the streaming media transmission process.
4.Transparent PTZ operation:
Happytime GB28181 Bridge supports transparent PTZ control and PTZ (Pan/Tilt/Zoom) operation, ensuring that users can control ONVIF cameras like GB28181 cameras.
5.GB28181 standard compatibility:
Comprehensive support for the 2016 and 2022 versions of the GB28181 standard ensures synchronization with the latest specifications.
6.Cross-platform compilation capability:
Happytime GB28181 Bridge supports multiple systems including Windows, Linux, MAC, iOS, Android, and embedded Linux, greatly expanding the scope of applications.
7.A variety of video encoding formats:
Supporting H264, H265, MPEG4, and PS encapsulation, to meet the video transmission requirements in different scenarios.
8.Multiple audio codecs:
Supports multiple audio codecs such as G711A, G711U, and AAC to ensure high-quality audio and video synchronization transmission.
9.Subscription and notification function:
Happytime GB28181 Bridge has the ability to subscribe and receive real-time notifications, enhancing the system's real-time performance and response speed.
10.Recording playback and download:
Support for instant playback and remote download of recordings, facilitating post-event analysis and event tracing.
11.Enhanced audio communication:
Happytime GB28181 Bridge supports audio talk and broadcast functions, enhancing the interactivity and practicality of the monitoring system.
12.Small size and high performance:
Happytime GB28181 Bridge has been optimized to significantly reduce the size of the target file, making it particularly suitable for use on resource-constrained embedded devices.
13.Self-developed SIP protocol stack:
The use of self-developed SIP protocol stack ensures the reliability and stability of Happytime GB28181 Bridge.
Technical specifications
Programming language: C/C++.
Cross-platform compilation: Support Windows, Linux, MAC, iOS, Android, and embedded Linux platforms.
GB28181 standard: Support 2016 and 2022 versions of the GB28181 standard.
File size: The target file is small, suitable for embedded device development.
Stability: The program runs stably and passes the GB28181 automated testing tool test.
SIP protocol stack: self-developed SIP protocol stack ensures the reliability and stability of communication.

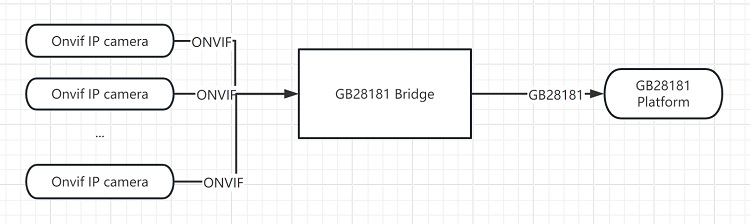

Function chart

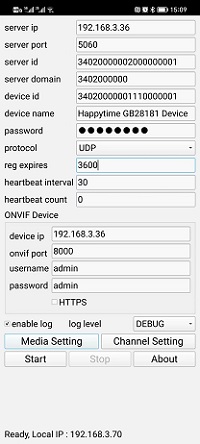

GB28181 Bridge Android APK
Run GB28181 Bridge
The GB28181 bridge is a console application.
Windows: to run the server, simply type "gb28181bridge".
Linux: to run the server, type "./start.sh", on linux platform, GB28181 bridge run as deamon by default.
GB28181 bridge supports the following command line options:
-c config specify the configuration file
-c option specifies the configuration file,if not specified, the default configuration gb28181bridge.cfg is used.
Demo version limitation
The DEMO version only supports two channels
The video stream of the demo version lasts up to 2 hours
